Compression fittings provide a dependable method to couple copper pipes, eliminating the need for welding or solder work. These connectors are often used by licensed plumbers and DIY users because they make repairs faster and easier. The assembly includes the fitting body, a compression ring ferrule, and a compression nut. As the nut is tightened, it compresses the ferrule and creates a tight seal around the tube.
1/2 OD Compression Fitting
To help achieve a successful installation, adhere to a few important best practices. Begin with square cuts and remove burrs from the tube end. Then check the tube end for scratches, distortion, or other damage. After assembly, tighten by hand before using a wrench for final tightening. Use two wrenches so the fitting body is held steady and the pipe does not twist. Remember, stay away from overtightening and never reuse a compressed ferrule to support a leak-free joint.
Compression fittings are commonly preferred over soldering for many applications. They eliminate the need for a flame and are reusable in many scenarios. Their quick setup in tight spaces is a major advantage. However, they are bulkier than soldered joints and may not be ideal in high-stress locations or hidden areas that are hard to inspect. It is important to use matching components and follow the manufacturer’s torque or turn specifications for optimal performance.
- Compression fittings connect copper tubing without solder or flame.
- Main parts: fitting body, ferrule olive, and compression nut.
- Prepare tubing with square cuts and deburring for reliable seals.
- Use two wrenches, tighten carefully, and avoid overtightening to reduce leaks.
- Select brass or other compatible materials and follow the manufacturer’s instructions.
How Compression Fittings Work And What They Are
A compression fitting joins tubing without requiring solder, flame, or heat. They use a simple threaded connection. This connection presses a ring against the pipe to form a seal. These joints are well suited for tight spaces and field repairs, where a fast connection is essential.
Main Components
The main pieces are the fitting body, the ferrule, and the tightening nut. The fitting body holds both the seating area and the threads. The ferrule, also called an olive, is positioned between the compression nut and the pipe. The compression nut threads onto the body to drive the ferrule forward.
Compression Sealing Principle
Sealing works by radial compression. When the compression nut is tightened, the ferrule is pushed into the tapered bore of the fitting body. That movement causes the ferrule to deform slightly and press against the outside diameter of the tubing.
This creates a line-contact seal that holds the tubing and helps resist leakage. Ferrule design and material strongly affect the seal’s performance under pressure and temperature changes.
Names And Variations Used Across Trades
Different trades use separate terms for the same idea. You may hear compression joint, compression couplings, or compression nut in plumbing supplies and HVAC catalogs. Instrumentation suppliers may list compression joints and compression fittings plumbing next to flare fittings, push-fit connectors, and other mechanical options.
| Term | Common Use | Key Feature |
|---|---|---|
| Compression fitting nut | Water lines and gas connections | Tightening action compresses the ferrule |
| Ferrule | Instrumentation and mechanical service lines | Compresses to grip and seal the tube |
| Mechanical compression joint | Field repairs and connections | No-solder assembly, reusable in many cases |
| Compression couplings | Extending or joining tubing runs | Straight coupling with ferrule on each side |
| Compression plumbing fittings | Home and commercial water systems | Broad size and material availability |
Compression Fittings For Copper Tubing
Material selection is critical to compression-joint performance. It influences performance, durability, and the risk of corrosion. Copper fittings are usually a compatible match for copper tubing. They share thermal expansion properties and promote consistent metal contact.
Brass compression fittings, on the other hand, provide ductility. That ductility helps the fitting form a reliable seal without unnecessarily damaging the tube.
For high-pressure or high-temperature service, stainless steel compression fittings are often ideal. They also provide resistance to many aggressive fluids. Plastic compression fittings may be suitable for low-pressure household water lines. They remove metal-to-metal contact, which can cause dissimilar-metal issues.
It is necessary to match materials to the application, pressure, and fluid type. For refrigeration and some plumbing, copper or brass parts are preferred. They reduce mixed-metal stress. For applications requiring high mechanical strength, stainless steel is a better choice. However, harder stainless ferrules can deform softer tubing when parts are not sized correctly.
When using copper tubing, do not use it with carbon steel or other dissimilar metals. Galvanic corrosion can rapidly accelerate deterioration at the junction. This shortens the service life. When mixed metals cannot be avoided, use dielectric unions, insulating sleeves, or compatible transition materials to reduce electrical contact.
Before assembly, inspect the tube surface, finish, roundness, and wall rigidity. A proper surface quality ensures ferrules bite evenly and form a lasting seal. Always use the manufacturer’s compatibility guidance before mixing materials. This helps reduce leaks and improve the life of the joint in the field.

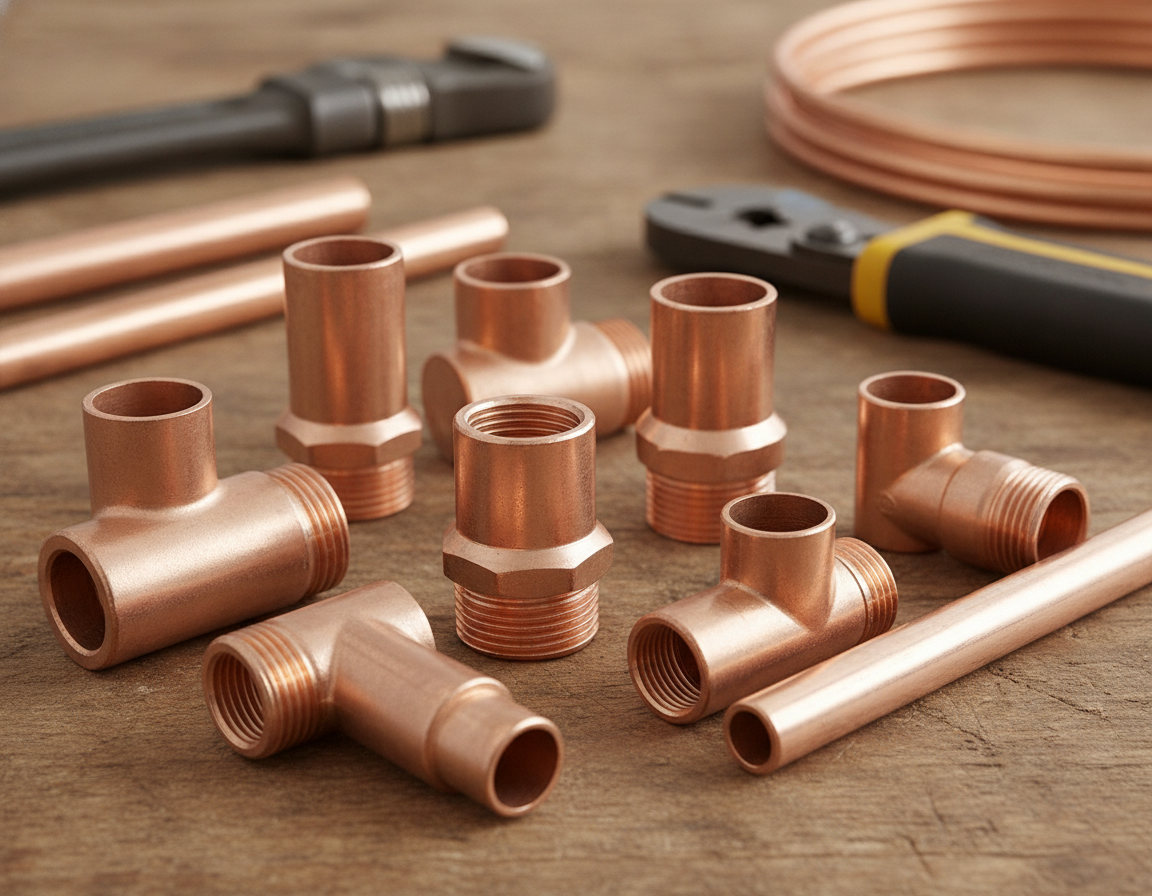

Types And Sizes Of Compression Tee And T Fittings For Copper Tubing
Choosing the right compression tee is important, influenced by flow needs, space constraints, and tubing sizes. Compression tees are commonly used in plumbing, refrigeration, and instrumentation systems. A proper match between ferrule geometry and body taper is essential for leak prevention.
Variants For Branching And Tight Spaces
Straight tees support full flow through three aligned ports. Branch tees route flow into a side line with less abrupt direction change. Compact tees are designed for wall cavities and tight areas where standard tees may not fit. They accept common sizes like the Compression Tee 1/2 for residential lines.
Common Size References And Cross-Fit Options
Installers often order parts by nominal tube OD. Popular choices include the 1/4 Compression T Fitting and the 1/2 Compression T Fitting. The 1 4 Tee is useful for small-diameter runs. Larger branches often call for 1/2 Inch Compression Fitting or 1/2 OD Compression Fitting options. Cross-fit adapters, like 1/2 X3/8 or 3/8 X 1/2 Compression Fitting, support mixing sizes when needed.
Combination Tees And Adapters
Combination tees, such as the 1/2 X 1/2 X 3/8 Tee, support transitions between sizes. A 1/2 X3/8 adapter steps a 1/2 line down to a 3/8 branch. The 1 2 To 1 4 Compression Fitting gives a compact reduction for instrumentation taps, sensors, or small branches.
Choosing Brass Tee And T Joint Fittings
Brass is the commonly chosen material for copper tubing connections due to its corrosion resistance and thermal expansion compatibility. For durable connections, look for T Brass Fitting options. The 1/2 Brass Tee and 1/2 Tee Brass are common choices for main lines and branch runs. Ensure thread pitch and ferrule fit before mixing brands for a proper seal.
| Tee Type | Usual Application | Typical Size Names | Material Notes |
|---|---|---|---|
| Straight Tee | Main run with branch inline | Compression Tee 1/2, 1 4 Tee | Brass preferred for copper tubing |
| Branch Compression Tee | Side branch off the main line | 1/2 Compression T Fitting, 1/4 Compression T Fitting | Use matched ferrules and bodies |
| Low-Clearance Tee | Confined locations and wall spaces | Common labels include Compression Tee 1/2 | Short body length, same sealing principle |
| Combination Tee | Branch reductions and instrument taps | 1/2 X3/8, 1/2 X 1/2 X 3/8 Tee, or 3/8 X 1/2 Compression Fitting | Adapters available: 1 2 To 1 4 Compression Fitting |
| T Brass Fitting | Corrosion-resistant copper systems | T Brass Fitting, 1/2 Brass Tee | Good copper match when pitch and taper are correct |
When To Use Compression Fittings Vs Soldering Or Other Methods
The best joining method depends on the job conditions, code requirements, and fitting capability. Compression fittings are well suited for tight spaces and areas near flammable materials, as they don’t require flame. Soldering is often better when a permanent, low-profile, visible installation is desired.
Benefits For Fast Installs And Confined Work
Flame-free fittings are helpful for emergency repairs and retrofits because they avoid torches and may reduce hot-work concerns. They only require basic hand tools, making them a go-to for fast fixes. Reusing these fittings is feasible in systems with low stress, which is beneficial for testing or replacing sections.
Profile Limits And Durability Concerns
Compression fittings introduce bulk compared to soldered seams. Once ferrules bite into the tube, fittings can be difficult to remove and reuse. In systems with vibration or pulsation, compression joints may loosen over time, so soldered or brazed connections may be better.
Application Selection Guide
In plumbing, use compression fittings for quick, no-flame repairs in tight spaces. For visible runs where appearance is important, soldering is the better choice.
In some gas-line work, compression fittings may be used for short runs. Always check local codes and use approved materials. Regularly inspect joints to ensure safety.
For HVAC and refrigeration, select copper fittings rated and designed for refrigerants. Where thermal cycling is heavy, brazed or flare joints may outlast compression fittings. Compression fittings such as a Compression Tee Fitting or T Compression Fitting can suit service taps, testing points, and temporary connections.
For instrumentation, choose fittings that can deliver leak-tight performance in high-pressure or high-purity lines. Stainless-steel compression options are excellent, but confirm they meet pressure and media ratings before installation.
| Comparison Factor | Compression Connection | Solder/Braze |
|---|---|---|
| Tools Required | Wrenches, minimal tools | Torch, flux, solder or filler |
| Speed | Fast setup in many field jobs | Slower due to heating and cooling |
| Profile | Bulkier fitting body | Lower profile and cleaner runs |
| Reusability | Possible but limited; reuse compression fittings varies | Permanent bond not intended for reuse |
| Dynamic Stress Performance | Can loosen under vibration if unsupported | High resistance with rigid bonded joints |
| Common uses | Quick repairs, service branches, and accessible joints | Permanent pipe runs and neat visible work |
Choose the joint style according to pressure, temperature, service access, and material compatibility. Compression fittings, including Compression Tee Fittings or T Compression Fittings, are suitable for plumbing, gas lines, HVAC fittings, and instrumentation when serviceability or a no-flame approach is necessary.
Step-By-Step Compression Fitting Installation Guide
Effective installation begins with thorough preparation and a well-ordered sequence. Every step matters because poor preparation can cause leaks or damage. This section explains how to install compression fittings on copper tubing and when to source compatible parts or tools from Installation Parts Supply.
Proper preparation of copper tubing is important. Use a tubing cutter to cut it squarely, then remove any burrs with a reamer. Check the tube end for nicks, scratches, dents, or deformation. Before assembly, clean the tube and inspect the fitting body, nut, and ferrule for damage.
Begin by sliding the nut onto the pipe, ensuring the threads face the end. Then place the ferrule or olive onto the pipe. Insert the pipe fully into the fitting body, ensuring the ferrule seats correctly. Hand-tighten the nut, then use a wrench to align the parts before applying final torque.
Correct tightening is critical to a secure seal. Use two wrenches to hold the fitting body while tightening the nut. Follow the manufacturer’s turn-based instructions instead of relying only on torque readings. Do not over-tighten, because too much force can flatten the ferrule and cause leaks.
Replacement ferrules are often required after disassembly. Once an olive or ferrule has been compressed, it should not be reused. If a ferrule is stuck, use a ferrule puller or carefully cut and remove it to avoid damaging the fitting body.
Plastic tubing usually needs an insert to maintain shape under compression. Copper tubing generally does not require inserts. After reassembly, open the supply slowly and inspect the joint for leaks. If necessary, tighten incrementally. For compatible parts, sizing details, and specifications, consult Installation Parts Supply.
Compression Ferrule Design And Performance Factors
Ferrule selection has a major effect on how a compression joint performs under pressure and over long service periods. Whether opting for a single-piece or two-piece ferrule, each has its advantages and considerations. Ferrule design must match the tubing material, tube size, and fitting body geometry to create a secure, lasting seal.
Ferrule materials and shapes
Ferrules are most often made from brass or stainless steel. For chemical resistance, high temperature, or specialty service, graphite or specialty alloy ferrules may be used. A single-piece ferrule is more straightforward to install and works well with softer copper tubing. A two-piece ferrule adds a rear ferrule that helps control rotation and reduce galling, especially in stainless systems.
Choosing asymmetrical or symmetrical ferrules
An asymmetrical ferrule is installed in a specific orientation, ensuring consistent performance. It is often preferred for high-reliability applications. In contrast, a symmetrical ferrule can be installed in either direction, making it quicker to assemble. However, it may perform less reliably on hard plastics where OD tolerance variations can contribute to leaks.
Seal geometry: line-contact versus surface-contact seals
The design of the ferrule determines whether it uses a line contact or surface contact seal. Line-contact seals often resist creep and vibration better. Over-tightening can, though, convert a line contact seal into a surface contact, increasing the risk of leakage over time.
Tube quality and material behavior considerations
Metal tubing needs smooth walls and accurate square cuts so the ferrule seats properly. Copper tubing from coils can have slight shape irregularities that influence sealing. Soft plastics and PTFE can creep or cold-flow under compression, which may reduce seal integrity over time.
Soft tubing and PTFE cold-flow mitigations
To reduce PTFE cold flow, consider tubing inserts, backup seals, or internal O-rings. Hardened ferrules may help distribute load more effectively. In high-pressure or high-purity systems, choose materials and approved lubricants that limit galling and residue. Ensure that the ferrule material matches the tubing and application requirements to maintain a reliable seal throughout its service life.
Common Installation Mistakes And Troubleshooting Techniques
When troubleshooting compression fittings, start with the basics: check the nut tightness, tubing alignment, and ferrule condition. Small leaks often stem from an under-tightened nut or an improperly seated ferrule. To prevent tubing damage, hold the fitting body with one wrench and tighten the nut with a second wrench.
Problems from overtightening can lead to pipe deformation, crushed ferrules, and persistent leaks. Too much tightening force can flatten the ferrule or damage copper tubing, producing a weak seal. When tubing is flattened or a ferrule is gouged, cut back the tube and install a new ferrule and nut.
Under-tightening can leave a small gap that allows slow seepage. For small weeps, tighten in small increments with a wrench until the leak stops. Avoid over-tightening by using incremental tightening for a reliable seal.
Misalignment or twisting can keep the ferrule from compressing evenly. Make sure the tubing enters the fitting body straight and seats fully. If the ferrule is misaligned, it can jam or become difficult to remove. Remove a stuck ferrule with a ferrule puller or carefully cut it away while protecting the tubing.
Identifying and fixing leaks starts with checking ferrule seating, tube condition, and fitting parts. Any damaged ferrule, nut, or fitting body should be replaced. For a quick fix, incremental tightening can stop small leaks until a proper repair can be scheduled. If the leak persists, consider re-cutting the tube end and reassembling the fitting.
Dealing with corrosion and galling requires both repair and prevention. Corrosion can pit the sealing surfaces, leading to recurring leaks. Galling can seize the nut and body, making disassembly difficult. For stuck nuts, apply penetrating oil and allow time for it to soak in. If threads, tapers, or sealing faces are damaged, replace the affected parts.
Choosing the right materials can reduce corrosion and galling. Avoid pairing carbon steel with copper to prevent galvanic reactions. Select ferrules and fittings suitable for your system’s chemistry and temperature. In cleanroom or high-purity service, volatile cleaning agents may increase galling risk, so use anti-galling ferrules and approved compatible lubricants where permitted.
Stuck nut recovery often begins with penetrating oil and patience. If the nut will not move, cutting off and replacing the nut and ferrule may be quicker than forcing it. Use the correct tools so the fitting body is not damaged.
When a compression joint is not the right choice, consider alternatives. Systems with constant vibration, dynamic stress, or low-profile requirements may be better served by soldered, crimped, flared, or welded connections. When planning repairs or new installs, compare compression and soldering for permanence, profile, accessibility, and code requirements.
| Problem | Likely Cause | Immediate Fix | Permanent Solution |
|---|---|---|---|
| Slow leak | Under-tightened nut or mis-seated ferrule | Incremental tightening with two wrenches | Replace ferrule and nut; re-cut tube end |
| Leak continues after tightening | Crushed ferrule or distorted tubing | Cut tube back and reassemble with new parts | Use manufacturer tightening guidance every time |
| Ferrule or nut will not release | Compression seat or galling | Soak, pull, or carefully cut away the part | Replace affected parts; choose anti-galling materials |
| Corrosion or pitted seal | Wrong material choice or chemical attack | Replace corroded parts | Choose correct materials and confirm code compliance |
| Joint fails under vibration | Dynamic stress exceeds fitting suitability | Clamp, secure, and inspect the affected run | Use soldering, welded joints, or crimp systems as alternative to compression fittings |
Copper Tubing Compression Fittings Summary
In summary, Copper Tubing Compression Fittings provide a versatile, flame-free way to join copper tubing across many applications. They perform best when materials are compatible and proper installation methods are followed. Brass, copper, stainless steel, and certain plastics are compatible, provided they avoid galvanic corrosion and thermal mismatch.
The Installation Parts Supply guide suggests replacing ferrules during reassembly and ensuring fittings are tightened to manufacturer specifications. That practice helps maintain reliable sealing.
Choose compression fittings for quick repairs, confined spaces, and removable joints. They do have limits when compared with soldered joints. Long-term performance depends on ferrule design, tubing quality, and correct assembly sequence.
For high-pressure or high-vibration systems, use ferrules rated for these conditions. Consider alternative joining methods when necessary.
This summary highlights the value of careful installation and routine inspections. Make sure cuts are square, clean, and deburred. Use the sliding nut and ferrule correctly, add an insert where required, hand-tighten first, and finish with measured wrench turns.
Use manufacturer torque or turn-count guidance to avoid leaks, ferrule damage, and tube distortion. For matching parts and compatible ferrules, check with qualified suppliers. They should offer 1/4 Compression T Fitting, 1/2 Compression T Fitting, and brass tee options to match your project.
