Above 65% of recent broadband deployments in urban U.S. projects now call for fiber-to-the-home. This rapid shift toward full-fiber networks shows the growing need for reliable production equipment.
Compact Fiber Unit
Fiber Coloring Machine
Fiber Coloring Machine
Shanghai Weiye Optic Fiber Communication Equipment Co (www.weiye-ofc.com) provides automated FTTH cable production line systems for the United States market. Their turnkey FTTH Cable Production Line for High-Speed Fiber Optics combines machines and control systems. It produces drop cables, indoor/outdoor cables, and high-density units for telecom, data centers, and LANs.
This high-performance FTTH cable making machinery delivers measurable business value. This system enables higher throughput together with consistent optical performance with low attenuation. This line additionally aligns with IEC 60794 together with ITU-T G.652D / G.657 standards. Customers gain reduced labor costs together with material waste through automation. Full delivery services deliver installation as well as operator training.
This FTTH cable line output line package features fiber draw tower integration, a fiber secondary coating line, as well as a fiber coloring machine. It further adds SZ stranding line, fiber ribbone line, compact fiber unit assembly, cable sheathing line, armoring modules, together with testing stations. Control and power specs often rely on Siemens PLC with HMI, operating at 380 V AC ±10% together with modular power consumption up to roughly 55 kW depending on configuration.
Shanghai Weiye’s customer support model delivers on-site commissioning by experienced engineers, remote monitoring, and rapid troubleshooting. It also provides lifetime technical support together with operator training. Clients are commonly expected to coordinate engineer logistics as part of standard supplier practice when ordering from FTTH cable machine suppliers.
Key Takeaways
- FTTH production line systems meet growing U.S. demand for fiber-to-the-home deployments.
- Turnkey systems from Shanghai Weiye combine automation, standards compliance, and operator training.
- Modular setups use Siemens PLC + HMI and operate near 380 V AC with up to ~55 kW power profiles.
- Built-in modules cover drawing, coating, coloring, stranding, ribbone, sheathing, armoring, and testing.
- Modern FTTH cable manufacturing systems reduces labor, waste, and improves optical consistency.
- Service coverage includes on-site commissioning, remote diagnostics, and lifetime technical assistance.
Understanding FTTH Cable Production Line Technology
This fiber optic cable manufacturing process for FTTH calls for precise control at every stage. Producers use integrated lines that combine drawing, coating, stranding, together with sheathing. That approach boosts yield as well as speeds up market entry. This system meets the needs of both residential as well as enterprise deployments in the United States.
Below, we outline the core components and technologies driving modern manufacturing. Each module must operate with precise timing and reliable feedback. The choice of equipment affects product quality, cost, and flexibility for various cable designs.
Core Components In Modern Fiber Optic Cable Manufacturing
Secondary coating lines apply dual-layer coatings, often 250 µm, using fast-cycle UV curing. Tight buffering and extrusion systems produce 600–900 µm jackets for indoor as well as drop cables.

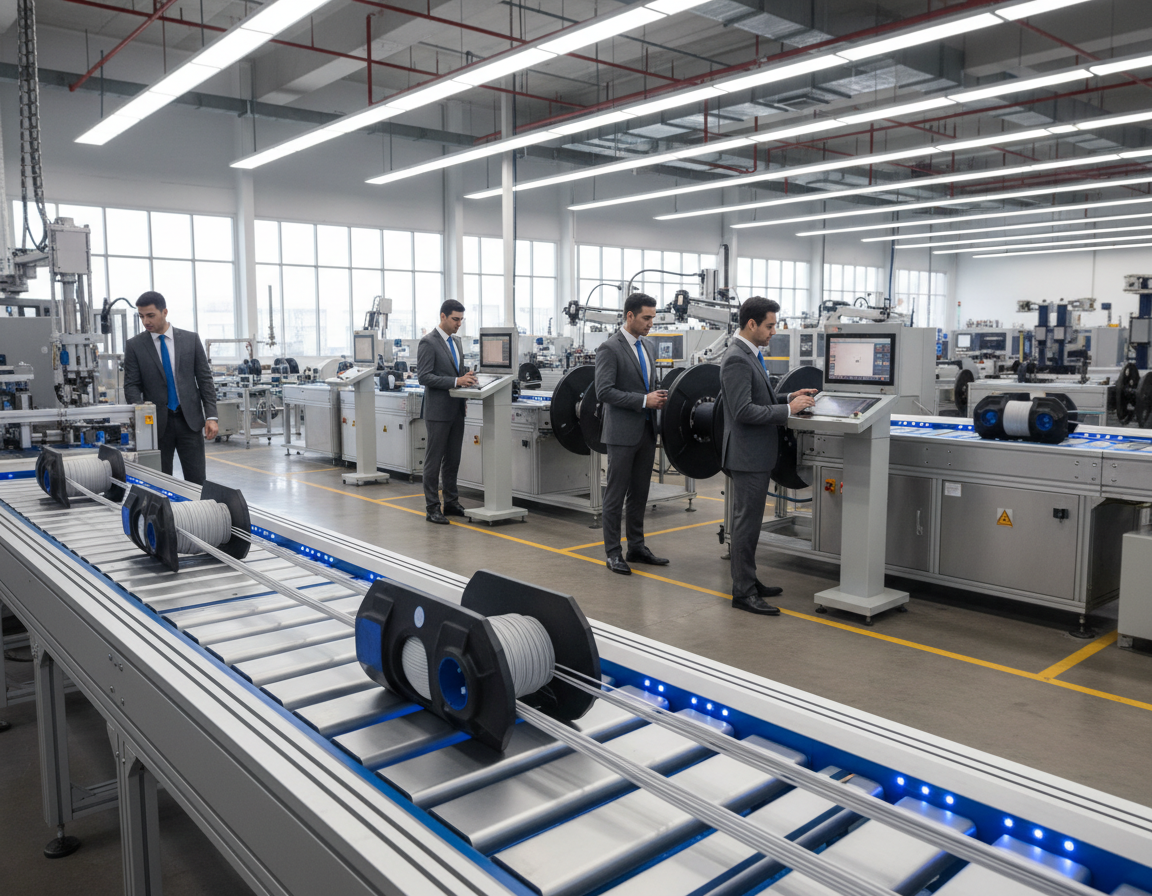

SZ stranding lines employ servo-controlled pay-off together with take-up units to handle up to 24 fibers featuring accurate lay length. Fiber coloring machines employ multi-channel UV curing to mark fibers to industry color codes.
Sheathing and extrusion stations produce PE, PVC, or LSZH jackets. Armoring units add steel tape or wire for outdoor protection. Cooling troughs and UV dryers stabilize profiles before testing.
Evolution From Traditional To Modern Production Systems
Early plants used manual and semi-automatic modules. Lines were separate, with hand transfers and basic controls. Modern facilities shift toward PLC-controlled, synchronized systems with touchscreen HMIs.
Remote diagnostics and modular turnkey setups allow rapid changeover between simplex, duplex, ribbon, and armored formats. This move supports automated fiber optic cable production and reduces labor dependence.
Technologies Driving Innovation In The Industry
High-precision tension control, based on servo pay-off and take-up, keeps geometry stable during fast-cycle runs. Multi-zone temperature control using Omron PID and precision heaters helps ensure consistent extrusion output quality.
High-speed UV curing and water cooling accelerate profile stabilization while reducing energy use. Integrated inline testers measure attenuation, geometry, tensile strength, crush resistance, and aging data.
| Process | Typical Module | Advantage |
|---|---|---|
| Fiber draw process | Draw tower with automated tension feedback | Consistent core diameter and low attenuation |
| Secondary coating | Dual-layer UV curing coaters | Consistent 250 µm coating for durability |
| Coloring | Fiber coloring unit with multiple channels | Reliable color identification for field work |
| SZ stranding | SZ line with servo control for up to 24 fibers | Accurate lay length across ribbon and loose tube designs |
| Jacket extrusion & sheathing | Efficient extruders with multi-zone heaters | PE, PVC, or LSZH jackets with tight dimensional control |
| Protection armoring | Armoring units for steel tape or wire | Improved outdoor mechanical protection |
| Cooling & curing | UV dryers and water troughs | Fast profile stabilization and reduced defects |
| Inline testing | Inline geometry and attenuation measurement | Real-time quality control and compliance reporting |
Compliance with IEC 60794 and ITU-T G.652D/G.657 variants is standard. Manufacturers typically certify to ISO 9001, CE, and RoHS. These credentials help support diverse applications, from FTTH drop cable production to armored outdoor runs and data center high-density solutions.
Choosing cutting-edge fiber optic manufacturing equipment as well as modern manufacturing equipment allows firms meet tight tolerances. Such equipment selection enables efficient automated fiber optic cable line output together with positions companies to deliver on scale together with output quality.
Key Equipment For Fiber Secondary Coating Line Operations
The secondary coating stage is critical, giving drawn optical fiber its final diameter and mechanical strength. It prepares the fiber for stranding and cabling. A well-tuned fiber secondary coating line controls coating thickness, adhesion, and surface quality. It protects the glass during handling.
Producers aiming for high-yield, fast-cycle fiber optic cable manufacturing must match material, tension, and curing systems to process requirements.
High-speed secondary coating processes rely on synchronized pay-off, coating heads, and UV ovens. Modern systems achieve high production rates while minimizing excess loss. Precise tension control at pay-off and winder stages prevents microbends and ensures consistent coating thickness across long runs.
Single and dual layer coating applications address different market needs. Single-layer setups provide basic mechanical protection and a simple optical fiber cable production machine footprint. Dual-layer lines combine a harder inner layer with a softer outer layer to improve microbend resistance and stripability. That helps when fibers are prepared for connectorization.
Temperature control together with curing systems are critical to final fiber performance. Multi-zone heaters and Omron PID controllers guide screw/barrel extruders to stable melt flow for LSZH or PVC compounds. UV curing ovens as well as water trough cooling stabilize the coating profile together with reduce variation in excess loss; targets for high-output quality single-mode fiber often aim for ≤0.2 dB/km at 1550 nm after extrusion.
Key components from trusted suppliers improve uptime as well as precision in an optical fiber cable production machine. Extruders such as 50×25 models, screws together with barrels from Jinhu, together with bearings from NSK are common. Motors from Dongguan Motor, inverters by Shenzhen Inovance, together with PLC/HMI platforms from Siemens or Omron provide robust control as well as monitoring for continuous runs.
Operational parameters support preventive maintenance and process tuning. Typical pay-off tension ranges from 0.4 to 1.5 N for fiber reels, while radiation and curing speeds are adjusted to material type and coating thickness. A preventive maintenance cycle around six months keeps secondary coating processes stable and supports reliable high-speed fiber optic cable production.
Fiber Draw Tower And Optical Preform Handling
The fiber draw tower is the core of optical fiber drawing. It softens a glass preform in a multi-zone furnace. Then, it pulls a continuous strand with precise diameter control. That stage sets the refractive-index profile and attenuation targets for downstream processes.
Process control on the tower uses real-time diameter feedback and tension management. It helps prevent microbends. Cooling zones and closed-loop systems keep geometry stable during the optical fiber cable production process. Modern towers log metrics for traceability and rapid troubleshooting.
Output quality supports single-mode fibers such as ITU-T G.652D and bend-insensitive types like G.657A1/A2 for FTTH networks. Draws routinely meet stringent loss figures. Excess loss after coating is kept at or below 0.2 dB/km for high-performance single-mode fiber.
Integration with secondary coating lines requires careful pay-off control. A synchronized handoff preserves alignment together with tension as the fiber enters coating, coloring, or ribbon count stations. That transfer step supports the optical fiber drawing step feeds smoothly into cable assembly.
Equipment vendors such as Shanghai Weiye offer turnkey options. These include testing stations for attenuation, tensile strength, and geometric tolerances. Such capabilities help manufacturers scale toward high-output fiber optic cable production while maintaining ISO-level consistency checks.
| Feature | Function | Typical Target |
|---|---|---|
| Furnace with multiple zones | Even preform heating for stable glass viscosity | Uniform draw speed with controlled refractive profile |
| Online diameter feedback control | Preserve core/cladding geometry and lower attenuation | Diameter tolerance of ±0.5 μm |
| Cooling and tension control | Reduce microbends and maintain fiber strength | Specified tension per fiber type |
| Automatic pay-off integration | Secure handoff to secondary coating and coloring | Synchronized feed rates for zero-slip transfer |
| Inline test stations | Check attenuation, tensile strength, and geometry | Loss ≤0.2 dB/km after coating for single-mode |
Advanced SZ Stranding Line Technology For Cable Assembly
The SZ stranding method creates alternating-direction lays that cut axial stiffness and boost flexibility. As a result, it is ideal for drop cables, building drop assemblies, and any application that needs a flexible core. Manufacturers moving toward automated fiber optic cable manufacturing use SZ approaches to meet tight bend and axial tolerance specs.
Precision in the stranding stage protects optical performance. Current precision stranding equipment relies on servo-driven carriers, rotors, together with modular pay-off racks that accept up to 24 fibers. These systems deliver precise lay-length control and allow quick reconfiguration for different cable types.
Automated tension control systems keep fibers within safe limits from pay-off to take-up. Servo pay-offs, capstans, and haul-off units maintain constant linear speed and target tensions. Typical fiber pay-off tension ranges from 0.4 to 1.5 N while reinforcement pay-offs run between 5 and 20 N.
Integration with a downstream fiber cable sheathing line streamlines manufacturing and lowers handling. Extrusion of PE, PVC, or LSZH jackets at 60–150 m/min syncs featuring stranding through a Siemens PLC. Cooling troughs as well as UV dryers stabilize the jacket profile right after extrusion to prevent ovality together with reduce mechanical stress.
Optional reinforcement and armoring modules add strength without compromising flexibility. Reinforcement pay-off racks accept steel wires or FRP rods. Armoring units wrap steel tape or wire with adjustable tension to meet specific mechanical ratings.
Built-in quality control prevents defects before cables leave the line. In-line geometry checks, fiber strain monitors, and optical attenuation measurement detect excess loss or mechanical strain caused by stranding or sheathing. These checks support continuous automated fiber optic cable manufacturing workflows and cut rework.
The combination of a robust sz stranding line, high-end precision stranding equipment, together with a synchronized fiber cable sheathing line provides a scalable solution for manufacturers. That setup raises throughput while protecting optical integrity as well as mechanical performance in finished cables.
Fiber Coloring Machine And Identification Systems
Coloring as well as identification are critical in fiber optic cable manufacturing. Accurate color application minimizes splicing errors and accelerates field work. Modern equipment combines fast coloring using inline inspection, ensuring high throughput together with low defect rates.
Today’s high-speed coloring technology supports multiple channels and quick curing. Machines can operate 8 to 12 color channels simultaneously, aligning using secondary coating lines. UV curing at speeds over 1500 m/min helps ensure color as well as adhesion stability for both ribbon together with counted fibers.
The following sections discuss standards and coding prevalent in telecom networks.
Color coding adheres to international telecom standards for 12-color cycles together with ribbon schemes. Such compliance aids technicians in installation as well as troubleshooting. Consistent coding significantly lowers field faults and accelerates network deployment.
Quality control integrates advanced fiber identification systems into production lines. In-line cameras, spectrometers, and sensors detect color discrepancies, poor saturation, and coating flaws. The PLC/HMI interface alerts to issues and can pause the line for correction, safeguarding downstream processes.
Machine specifications are vital for uninterrupted runs as well as material compatibility. Leading equipment accepts UV-curable pigments as well as inks, compatible using common coatings together with extrusion steps. Pay-off reels accommodating 25 km or 50 km spools ensure continuous operation on high-volume lines.
Supplier support is essential for US manufacturers adopting these technologies. Shanghai Weiye as well as other established vendors offer customizable channels, remote diagnostics, together with onsite training. That support reduces ramp-up time as well as enhances the reliability of fiber optic cable line output equipment.
Specialized Solutions For Fiber In Metal Tube Production
Metal tube as well as metal-armored cable assemblies deliver robust protection for fiber lines. They are ideal for direct-buried and industrial applications. This controlled routing of coated fibers into metal tubes prevents microbends, ensuring optical performance remains within specifications.
Processes depend on precision filling and centering units. These modules, in conjunction using fiber optic cable manufacturing equipment, ensure concentric placement together with controlled tension during insertion.
Armoring steps involve the employ of steel tape or wire units with adjustable tension as well as wrapping geometry. That approach benefits armored fiber cable manufacturing by preventing compression of fiber elements. This system further keeps reinforcement wires at typical diameters of ø0.4–ø1.0 mm.
Coupling armoring with downstream sheathing together with extrusion lines results in a finished outer jacket made of PE, PVC, or LSZH. An optical fiber cable production machine must handle pay-off reels sized for reinforcement and align with sheathing tolerances.
Quality checks include crush, tensile, and aging tests to confirm the armor does not exceed allowable stress on fibers. Standards-based testing ensures long-term reliability in field conditions.
Turnkey solutions from established manufacturers integrate metal tube handling with SZ stranding and sheathing lines. These solutions include operator training and maintenance schedules to sustain throughput on fiber optic cable manufacturing equipment.
Buyers should consider compatibility with armored fiber cable manufacturing modules, ease of changeover, as well as service support for field upgrades. These factors reduce downtime together with protect investment in an optical fiber cable production machine.
Fiber Ribbon Line And Compact Fiber Unit Manufacturing
Advanced data networks require efficient assemblies that pack more fibers into less space. Cable makers employ a fiber ribbon line to create flat ribbon assemblies for rapid splicing. That production method uses parallel processes together with precise geometry to meet the needs of MPO trunking as well as backbone cabling.
Advanced equipment ensures accuracy and speed in manufacturing. A fiber ribbone line typically integrates automated alignment, epoxy bonding, precise curing, together with shear/stacking modules. In-line attenuation and geometry testing reduce rework, maintaining high yields.
Compact fiber unit manufacturing focuses on tight tolerances as well as material choice. Extrusion together with buffering create compact fiber unit constructions using typical tube diameters from 1.2 to 6.0 mm. Common materials include PBT, PP, as well as LSZH for durability as well as flame performance.
High-density cable solutions aim to enhance rack and tray efficiency in data centers. By increasing fiber count per unit area, these designs shrink cable diameter and simplify routing. They are compatible with MPO trunking and high-count backbone systems.
Production controls as well as speeds are critical for throughput. Advanced lines can reach up to 800 m/min, depending on configuration. PLC as well as HMI touch-screen control enable quick parameter changes as well as synchronization across multiple lines.
Quality and customization remain key differentiators for manufacturers like Shanghai Weiye. Electronic monitoring, customizable ribbon counts, stacking patterns, and turnkey integration with sheathing and testing stations support bespoke high-speed fiber cable production line requirements.
| Key Feature | Ribbon Line | Compact Unit | Data Center Benefit |
|---|---|---|---|
| Line speed | Up to roughly 800 m/min | Up to 600–800 m/min | More output for large deployment projects |
| Key Processes | Alignment automation, epoxy bonding, and curing | Buffering, extrusion, and precision winding | Consistent geometry and lower insertion loss |
| Material set | Specialized tapes and bonding resins | PBT, PP, and LSZH jackets/buffers | Long-term reliability and safety compliance |
| Testing | Real-time attenuation and geometry inspection | Precision dimensional control with tension monitoring | Lower failure rates and faster rollout |
| Integration | Integrated sheathing with splice-ready stacking | Modular units for high-density cable solutions | More efficient MPO trunk and backbone deployment |
Optimizing High-Speed Internet Cable Production
Efficient high-speed fiber optic cable production relies on precise line setup and strict process control. To meet US market demands, manufacturers must adjust pay-off reels, extrusion dies, and tension systems. This helps ensure optimal output for flat, round, simplex, and duplex FTTH profiles.
Cabling Systems Used In FTTH Applications
FTTH cabling systems must accommodate various drop cable types while maintaining consistent center heights, like 1000 mm. Production lines for FTTH include 2- together with 4-reel pay-off options. They also feature reinforcement pay-off heads for enhanced strength.
Extruder models, such as a 50×25, control jacket speeds between 100 and 150 m/min, depending on LSZH or PVC. Extrusion dies for 2.0×3.0 mm profiles guarantee reliable jackets for field installation.
Fiber Pulling Process Quality Assurance
Servo-controlled pay-off and take-up units regulate fiber tension between 0.4–1.5 N to prevent excess loss. Inline systems conduct fiber pull testing, attenuation checks, mechanical tensile tests, and crush and aging cycles. These tests verify performance.
Key control components include Siemens PLCs and Omron PID controllers. Motors from Dongguan Motor and inverters from Shenzhen Inovance ensure stable operation and easier maintenance.
Meeting Optical Fiber Drawing Industry Standards
A well-tuned fiber draw tower produces fibers that meet ITU-T G.652D and G.657 standards. The goal is to achieve ≤0.2 dB/km excess loss at 1550 nm for high-quality single-mode fiber.
Choosing the best equipment for FTTH cables involves evaluating speed, customization, warranty, and local after-sales support. Top FTTH cable production line manufacturers provide turnkey layouts, remote monitoring, and operator training. That reduces ramp-up time for US customers.
Final Thoughts
Advanced FTTH cable making machinery integrates various components. These include fiber draw towers, secondary coating, coloring lines, SZ stranding, and ribbon units. It also includes sheathing, armoring, and automated testing for consistent high-speed fiber production. A complete fiber optic cable production line is designed for FTTH and data center markets. It enhances throughput, keeps losses low, and maintains tight tolerances.
For U.S. manufacturers and system integrators, partnering with reputable suppliers is key. They should offer turnkey systems with Siemens or Omron-based controls. This includes on-site commissioning, remote diagnostics, and lifetime technical support. Companies like Shanghai Weiye Optic Fiber Communication Equipment Co provide integrated solutions. Such solutions simplify automated fiber optic cable manufacturing and reduce time to production.
Technically, ensure line configurations adhere to IEC 60794 together with ITU-T G.652D/G.657 standards. Verify tension together with curing settings to meet excess loss targets, such as ≤0.2 dB/km at 1550 nm. Adopt preventive maintenance cycles of roughly six months for reliable 24/7 operation. When planning a new FTTH cable manufacturing line, first evaluate required cable types. Collect product drawings together with standards, request detailed equipment specs as well as turnkey proposals, together with schedule engineer commissioning as well as operator training.
